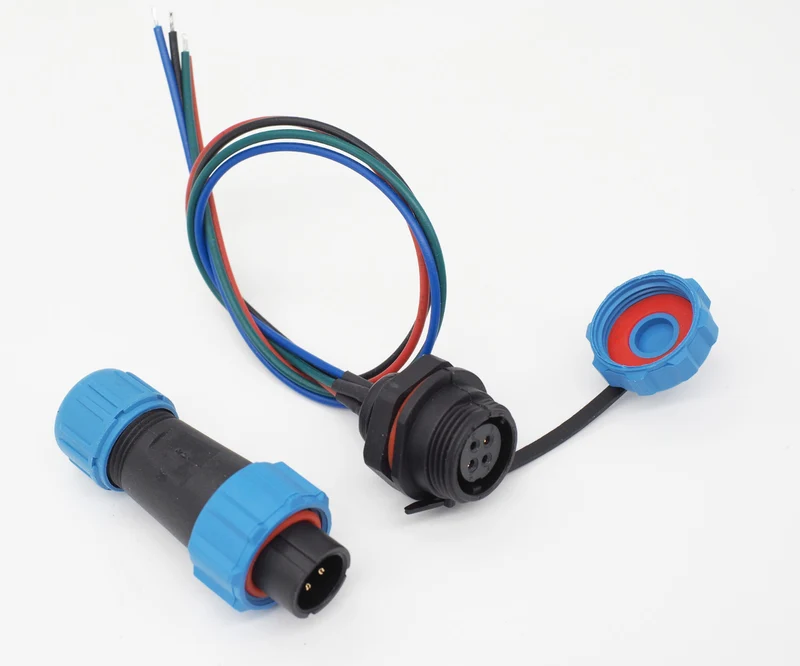

SP13 Pigtail Connector Pair, 4-pin, Male Cable Plug

A four-pin SP13 connector with a male cable plug and a female panel connector. Suitable to be used for example as a sensor data connector. The panel connector has a pigtail for easier and faster installation: just trim the wires to the correct length, strip and connect to a screw terminal!

Contents:

1. One pigtail panel connector with a back nut (male)
2. One cable plug (female)

Specifications:

1. Ingress Protection rating: IP68
2. Contact diameter: 4×1.0 mm
3. Rated current: 5 A
4. Cable range: 4-6.5 mm

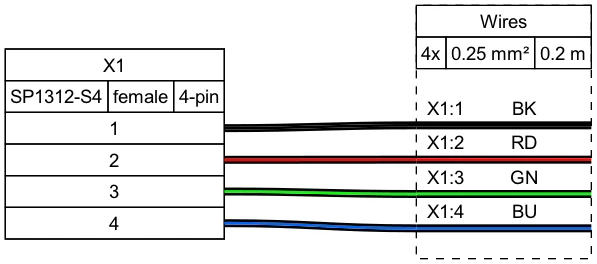

5. Pigtail wire length: 20 cm
6. Pigtail wire gauge: 22 AWG (0.34 mm2)
