CM4 Antenna

The Compute Module 4 Antenna is an external antenna for the Raspberry Pi CM4 modules. It can significantly increase the WiFi and Bluetooth signal range and speed compared to the standard onboard antenna.

The CM4 antenna is certified for use with Raspberry Pi Compute Module 4, meaning that the combination complies with CE, FCC and other standards' requirements.

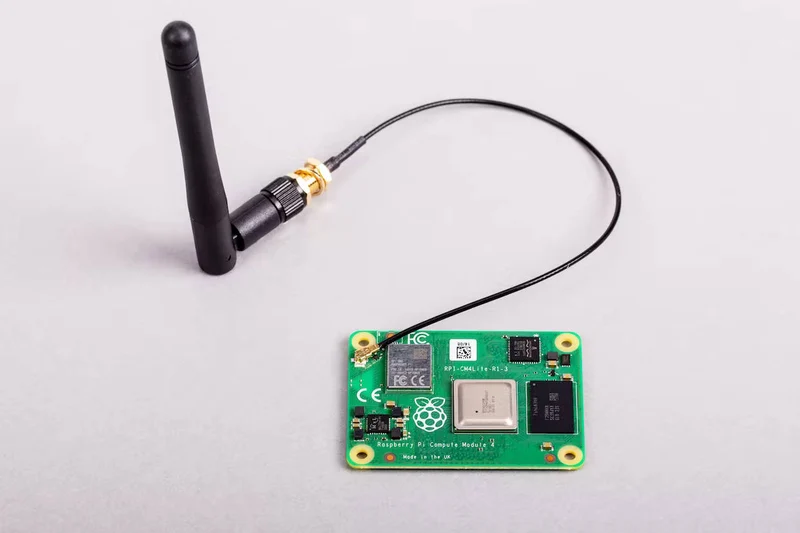

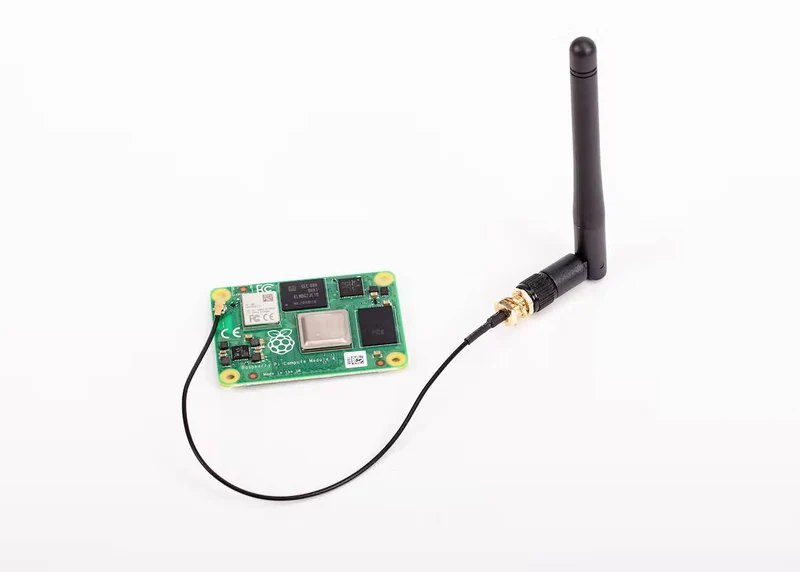

Includes an antenna and an SMA to U.FL cable.

• Frequency range: 2400-2500/5100-5800 MHz
• Bandwidth: 100–700MHz
• VSWR: ≤ 2.0
• Gain: 2 dBi
• Impedance: 50 ohm
• Polarisation: Vertical
• Radiation: Omnidirectional
• Maximum power: 10W
• Antenna dimensions: 108 mm × 10 mm
• Cable length: 205 mm

For more information, see the manufacturer product page.
